型号参数 材料:采用UL认可的尼龙材料
密封盖:丁晴橡胶（NBR）
工作温度:静态-40℃至100℃
或瞬间可耐热至120℃
动态-20℃至80℃
或瞬间可耐热至100℃
颜色种类:灰色、黑色，其它颜色可定做 |
| 技术参数 |
|
产品型号 |
螺纹规格 |
适用电缆(mm) |
螺纹外径(mm) |
螺纹长度(mm) |
扳手直径 (mm) |
数量/袋 |
|
ZD-PG7N-L |
PG7 |
3~6.5 |
12.5 |
15 |
18/16 |
100 |
|
ZD-PG7N-L |
PG7 |
2~5 |
12.5 |
15 |
18/16 |
100 |
|
ZD-PG9N-L |
PG9 |
4~8 |
15.2 |
15 |
22/19 |
100 |
|
ZD-PG9N-L |
PG9 |
2~6 |
15.2 |
15 |
22/19 |
100 |
|
ZD-PG11N-L |
PG11 |
5~10 |
18.6 |
15 |
24/22 |
100 |
|
ZD-PG11N-L |
PG11 |
3~7 |
18.6 |
15 |
24/22 |
100 |
|
ZD-PG13.5N-L |
PG13.5 |
6~11 |
20.4 |
15 |
27/24 |
100 |
|
ZD-PG13.5N-L |
PG13.5 |
5~9 |
20.4 |
15 |
27/24 |
100 |
|
ZD-PG16N-L |
PG16 |
10~13 |
22.5 |
16 |
30/27 |
100 |
|
ZD-PG16N-L |
PG16 |
7~12 |
22.5 |
16 |
30/27 |
100 |
|
ZD-PG19N-L |
PG19 |
12~15 |
24 |
16 |
30/28 |
100 |
|
ZD-PG19N-L |
PG19 |
10~12 |
24 |
16 |
30/28 |
100 |
|
ZD-PG21N-L |
PG21 |
13~18 |
28.3 |
16 |
35/33 |
100 |
|
ZD-PG21N-L |
PG21 |
9~16 |
28.3 |
16 |
35/33 |
100 |
|
ZD-PG25N-L |
PG25 |
16~21 |
30 |
16 |
37/35 |
50 |
|
ZD-PG25N-L |
PG25 |
13~18 |
30 |
16 |
37/35 |
50 |
|
ZD-PG29N-L |
PG29 |
18~25 |
37 |
16 |
43/41 |
50 |
|
ZD-PG29N-L |
PG29 |
13~20 |
37 |
16 |
43/41 |
50 |
|
ZD-PG36N-L |
PG36 |
22~33 |
47 |
16 |
60/53 |
20 |
|
ZD-PG36N-L |
PG36 |
20~26 |
47 |
16 |
60/53 |
20 |
|
ZD-PG42N-L |
PG42 |
32~39 |
54 |
18 |
67/62 |
20 |
|
ZD-PG42N-L |
PG42 |
25~31 |
54 |
18 |
67/62 |
20 |
|
ZD-PG48N-L |
PG48 |
37~44 |
59.3 |
18 |
72/70 |
20 |
|
ZD-PG48N-L |
PG48 |
29~35 |
59.3 |
18 |
72/70 |
20 |
|
ZD-PG63N-L |
PG63 |
42~51 |
70 |
30 |
82/77 |
10 |
|
ZD-PG63N-L |
PG63 |
32~40 |
70 |
30 |
82/77 |
10 | |

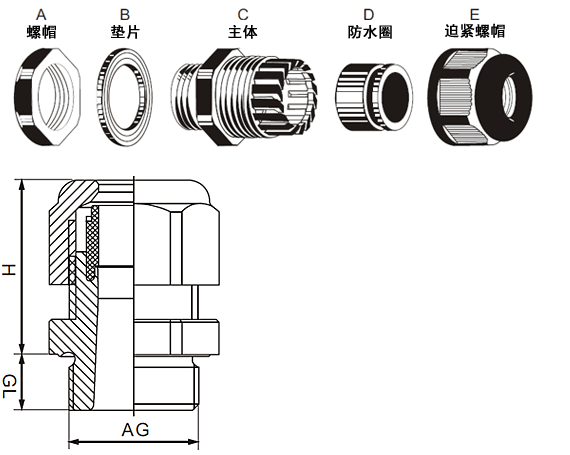

| 外形尺寸图 |
 | |
