| 技术参数 |
| Model |
mm |
H
mm |
GL
mm |
mm |
| G1/4" |
3-6,5 |
22 |
8 |
15/16 |
| G1/4" |
2-5 |
22 |
8 |
15/16 |
| G3/8" |
4-8 |
26 |
15 |
19 |
| G3/8" |
2-6 |
26 |
15 |
19 |
| G1/2" |
6-12 |
30 |
13 |
24 |
| G1/2" |
5-9 |
30 |
13 |
24 |
| G3/4" |
13-18 |
37 |
15 |
33 |
| G3/4" |
9-19 |
37 |
15 |
33 |
| G1" |
18-25 |
40 |
16 |
41 |
| G1" |
13-20 |
40 |
16 |
41 |
| G11/4" |
18-25 |
40 |
18 |
46/42 |
| G11/4" |
13-20 |
40 |
18 |
46/42 |
| G11/2" |
22-32 |
48 |
15 |
52/53 |
| G11/2" |
20-26 |
48 |
15 |
52/53 |
| G2" |
37-44 |
50 |
15 |
64 |
| G2" |
29-35 |
50 |
15 |
64 | |

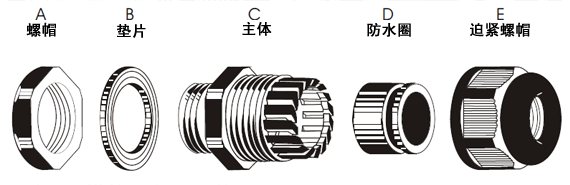

| 外形尺寸图 |
 | |
